Tricorn Hotend - High Flow - Long: Semi-Assembled

PRE-ORDER: currently being manufactured hoping to ship end of September early October.

$180.00

Out of stock

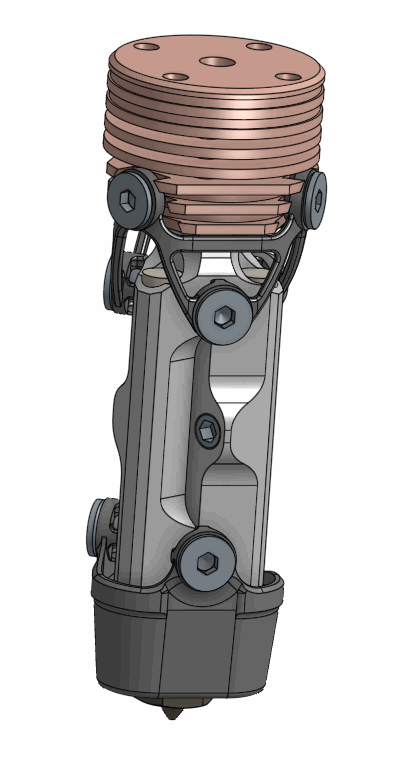

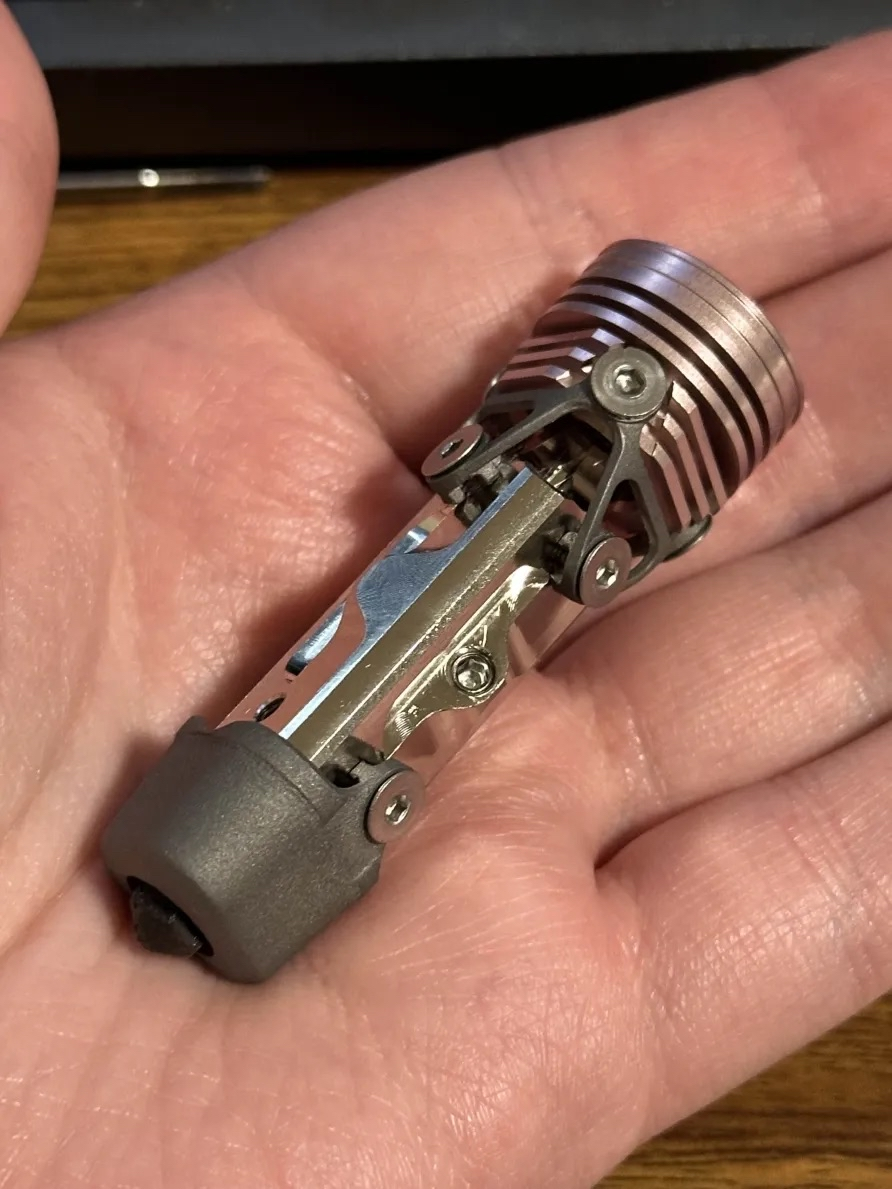

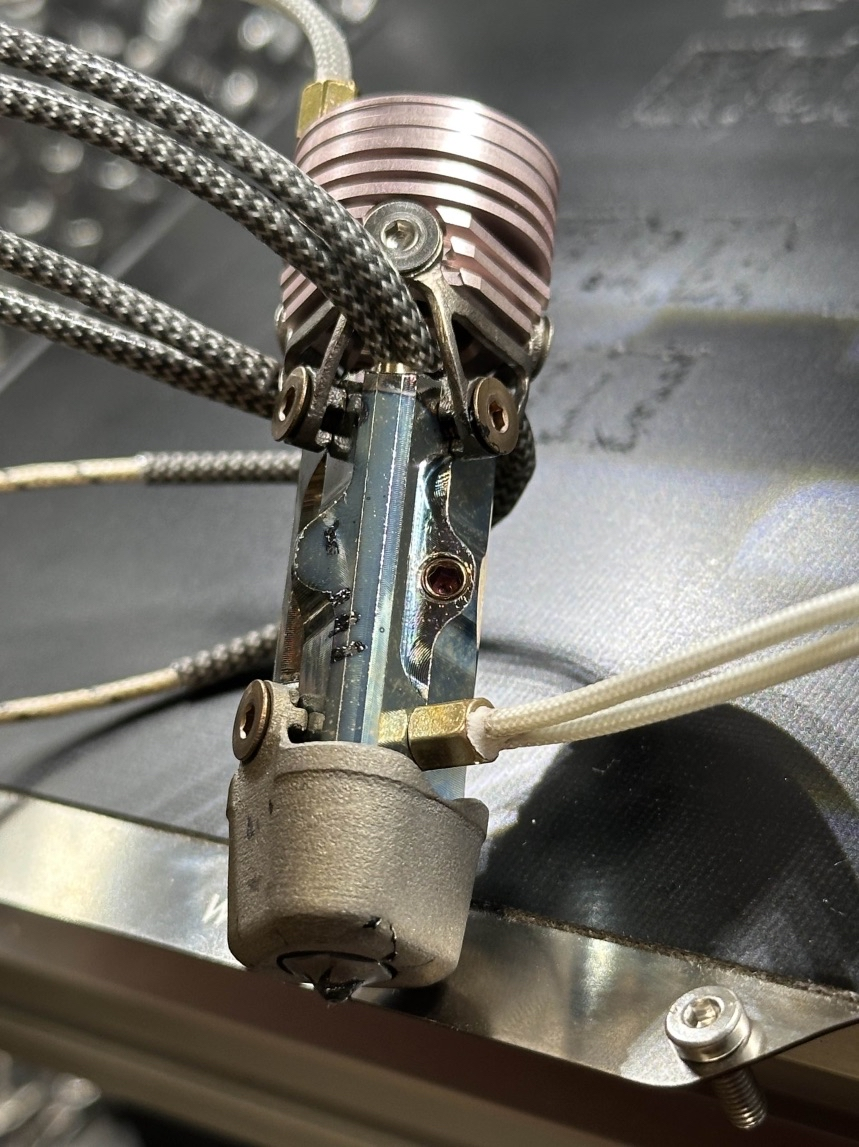

Tricorn Hotend is a modern "open-source" hotend featuring mostly standard components while introducing some new ones.

  • Inverted heatbreak Tricorn keeps the heatbreak threads out of the meltzone generally improving thermals.

  • 4mm Heater cartridges, more combined surface area than 6mm, replacable.

  • No screw smaller than m3, everything is either m4 or m3.

  • M3 Dragon mounting

  • Air (Fan) or Conduction (Metal plate mounted)

    • (Long) With Hotblock at 260c the Heatsink is passively 118c when unmounted/uncooled in roomtemp env.

  • A Long meltzone for it's size.

    • (Long) ~53.5mm with a nozzle, 48mm without.

    • (Short) ~41mm with a nozzle, 35.5mm without.

Heaters & Thermistor included but not installed

Included with the purchase:

  • 3x 4x40mm 40W Heaters

  • 1x Glidcop Al-60 Block

  • 1x 6061 Heatsink

  • 2x TC4 Heatbreak

  • 2x M3 PT1000 Thermistors

  • 1x SLM Titanium TC4 Nozzle Shield

  • 1x SLM Titanium TC4 Block to Heatsink attachment

Portion of sales goes to the creator!

GitHub link:

https://github.com/tricornhotend/tricornhotend.com

Credits:

Okano – Design

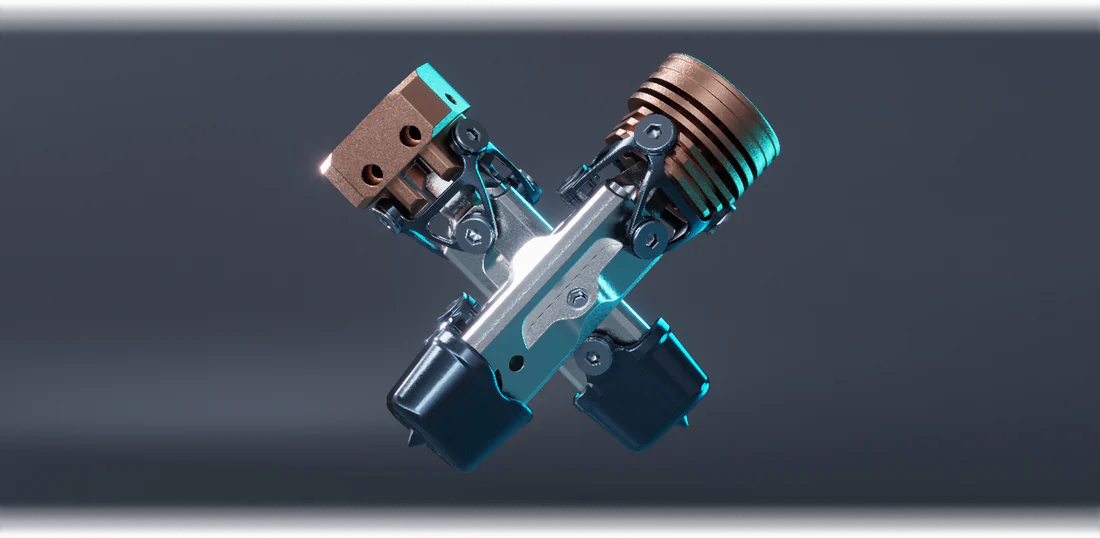

Synoon – Banner render

RaccoonWorks – Production/ material choice
